Gel documentation system is a lab device used to capture and analyze images of DNA, RNA, or protein bands after gel electrophoresis for accurate recording and analysis.
Pricing is available on request only. Send us your requirements and we will respond with lead time, shipping, and compliance details.

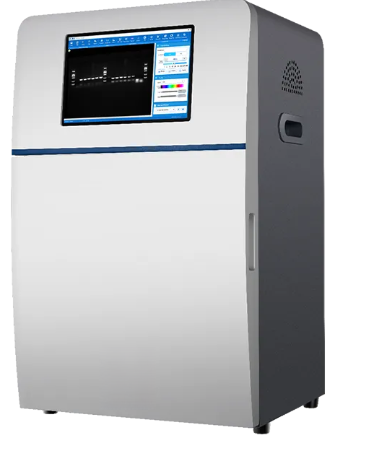

Gel Documentation System BV-GDS-A20 delivers high-resolution, high-sensitivity imaging for nucleic acid and protein gel analysis. Equipped with a 16-bit scientific grade digital camera and auto-focus zoom lens, it ensures precise detection of even faint bands with excellent clarity. Its modular, extendable design supports UV, blue, and white light transilluminators, as well as fluorescence imaging for multi-color applications. The intuitive image capture and analysis software enables accurate and efficient results, while the optional 10.1” touch screen offers seamless operation without the need for an external computer.
A Gel Documentation System is widely used in molecular biology and research laboratories to visualize and analyze DNA, RNA, and protein bands after gel electrophoresis. It helps in verifying PCR results, studying gene expression, analyzing restriction digestion, and performing protein analysis through SDS-PAGE. The system also enables quantification of band intensity to estimate sample concentration and provides accurate image capture for documentation, reporting, and long-term data storage.
| Specification | Details |
|---|---|
| A/D | 16-bit (65536 Grey Scales) |
| SNR | 70.1 dB |
| Lens | F/1.2 Motorized |
| Resolution | CCD camera, 6.3 megapixels, 3072 x 2048 |
| Sample Area | 260 × 210 mm |
| Dark Current | 1e-/pixel/sec. at 25°C |
| Gross Weight | 39 kg |
| Light Sources | UV Smart UV Transilluminator (302 nm), Super Slim white LED Transilluminator Super Slim blue LED Transilluminator (470 nm) (optional) |
| Readout Noise5 | 1e-RMS |
| Emission Filter | 590 nm |
| Quantum Efficiency | ≥ 81% |
| Packaging Dimension | 550 × 490 × 790 mm + 370 × 390 × 490 mm (2 cartons) |
| Format For Storing Image | JPG/TIFF/PNG/BMP |
