A Biosafety Cabinet (BSC) is a ventilated laboratory enclosure designed to provide personnel, product, and environmental protection during the handling of biological and infectious materials. It uses high-efficiency air filtration and controlled airflow to minimize contamination and ensure a safe working environment.
Pricing is available on request only. Send us your requirements and we will respond with lead time, shipping, and compliance details.

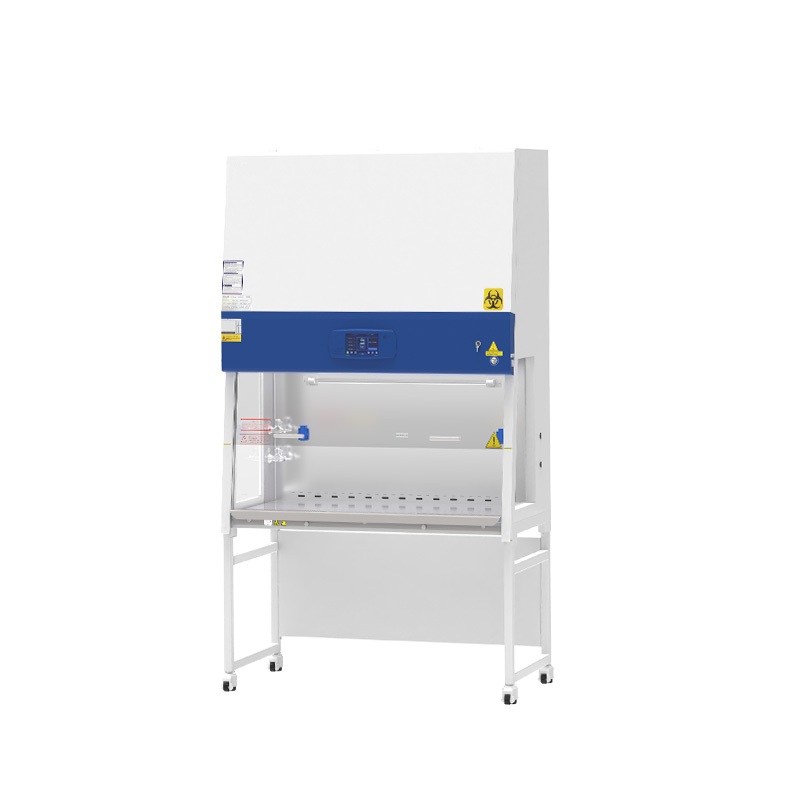

The BV-BSC-EN4 The Class II A2 Microbiological Safety Cabinet is designed to protect the operator, laboratory environment, and work materials through a negative-pressure filtration system compliant with the EN 12469:2000 international standard. It features a 7-inch touch colour display with real-time monitoring, dynamic airflow visualization, and audible and visual alarms. Additional features include password protection, automatic airflow adjustment, power-failure memory with alarm reminder, and side observation windows for improved visibility.
The Class II A2 Microbiological Safety Cabinet is used in microbiology, clinical, pharmaceutical, biotechnology, and research laboratories for the safe handling of biological samples and infectious materials. It provides protection for the operator, the environment, and the product during research, testing, and diagnostic applications.
| Specification | Details |
|---|---|
| Display | 7-inch Color Touch Screen |
| ULPA Filter Efficiency | 99.9995% at 0.12 μm (2 ULPA Filters) |
| Front Window | Manual & Electric, >5 mm Anti-UV Tempered Glass |
| Work Surface Height | 750 mm |
| Maximum Front Opening | 500 mm |
| Tested Front Opening | 200 mm |
| Inflow Air Volume | 490 m³/h (289 CFM) |
| Downflow Air Volume | 910 m³/h (536 CFM), 65% Recirculation |
| Exhaust Air Volume | 490 m³/h (289 CFM), 35% Exhaust |
| Noise Level | ≤65 dB |
| Illumination | ≥1000 Lux |
| Motor | AC Motor, Adjustable Speed |
| Work Surface Material | 304 Stainless Steel |
| Exterior Material | Cold-Rolled Steel with Antibacterial Powder Coating |
| Side Windows | Tempered Glass |
| LED Lamp | 14 W × 2 |
| UV Lamp | 30 W |
| Electrical Socket | European Standard, 230 V, 3 A |
| Rated Power | 1200 W |
| Alarm Functions | Airflow, Sash Height, Power Failure |
| External Dimensions (W × D × H) | 1383 × 800 × 2260 mm |
| Internal Dimensions (W × D × H) | 1280 × 600 × 650 mm |
| Package Dimensions (W × D × H) | 1530 × 1060 × 1880 mm |
| Power Supply | AC 230 V, 50/60 Hz |
| Gross Weight | 345 kgx |
