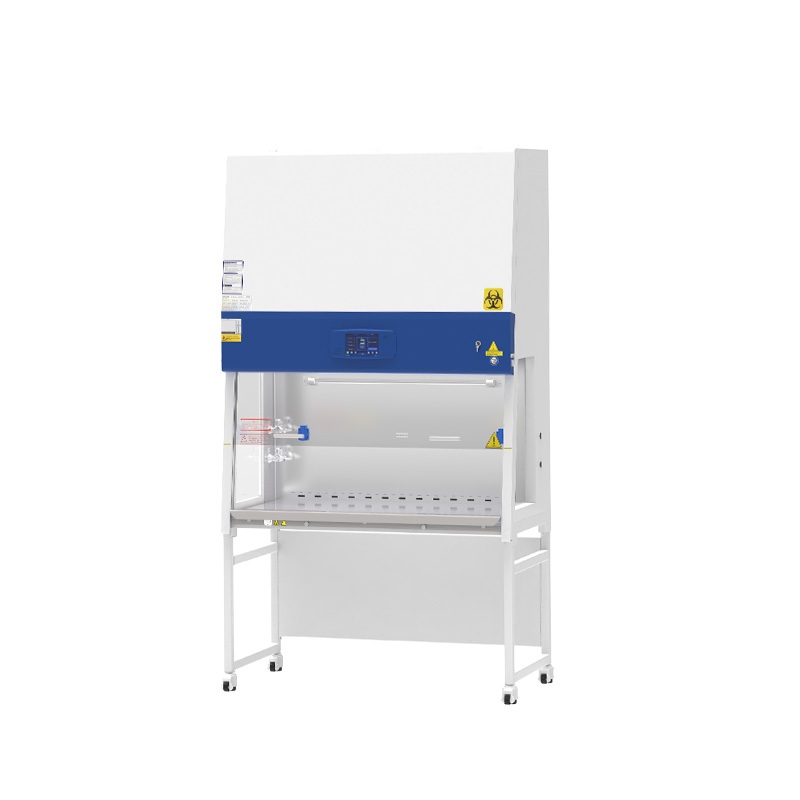

The EN Certified Class II A2 Biosafety Cabinet is designed to provide reliable protection for the operator, the environment, and the product during the handling of biological materials. Certified to EN 12469:2000, it features advanced airflow control, ULPA filtration, ergonomic design, real-time monitoring, and multiple safety functions, making it ideal for clinical, pharmaceutical, biotechnology, and research laboratories.
Pricing is available on request only. Send us your requirements and we will respond with lead time, shipping, and compliance details.
The BV-BSC-EN3 The Class II A2 Microbiological Safety Cabinet is designed to protect the operator, laboratory environment, and work materials through a negative-pressure filtration system compliant with the EN 12469:2000 international standard. It features a 7-inch touch colour display with real-time monitoring, dynamic airflow visualization, and audible and visual alarms. Additional features include password protection, automatic airflow adjustment, power-failure memory with alarm reminder, and side observation windows for improved visibility.
The Class II A2 Microbiological Safety Cabinet is used in microbiology, clinical, pharmaceutical, biotechnology, and research laboratories for the safe handling of biological samples and infectious materials. It provides protection for the operator, the environment, and the product during research, testing, and diagnostic applications.
| Specification | Details |
|---|---|
| Internal Dimensions (W × D × H) | 980 × 600 × 650 mm |
| Package Dimensions (W × D × H) | 1240 × 1060 × 1880 mm |
| Power Supply | AC 230 V, 50/60 Hz |
| Gross Weight | 270 kg |
| Display | 7-inch Color Touch Screen |
| Downflow Air Volume | 690 m³/h (406 CFM), 65% Recirculation |
| Exhaust Air Volume | 370 m³/h (218 CFM), 35% Exhaust |
| Work Surface Height | 750 mm |
| Maximum Front Opening | 500 mm |
| Tested Front Opening | 200 mm |
| Inflow Air Volume | 370 m³/h (218 CFM) |
| ULPA Filter Efficiency | 99.9995% at 0.12 μm (2 ULPA Filters) |
| Front Window | Manual & Electric, >5 mm Anti-UV Tempered Glass |
| Noise Level | ≤65 dB |
| Illumination | ≥1000 Lux |
| Motor | AC Motor, Adjustable Speed |
| Work Surface Material | 304 Stainless Steel |
| Exterior Material | Cold-Rolled Steel with Antibacterial Powder Coating |
| Side Windows | Tempered Glass |
| LED Lamp | 12 W × 2 |
| UV Lamp | 20 W |
| Electrical Socket | European Standard, 230 V, 3 A |
| Rated Power | 1100 W |
| Alarm Functions | Airflow, Sash Height, Power Failure |
| External Dimensions (W × D × H) | 1087 × 800 × 2260 mm |
